designing service
The distance from planning to production is
no longer far!

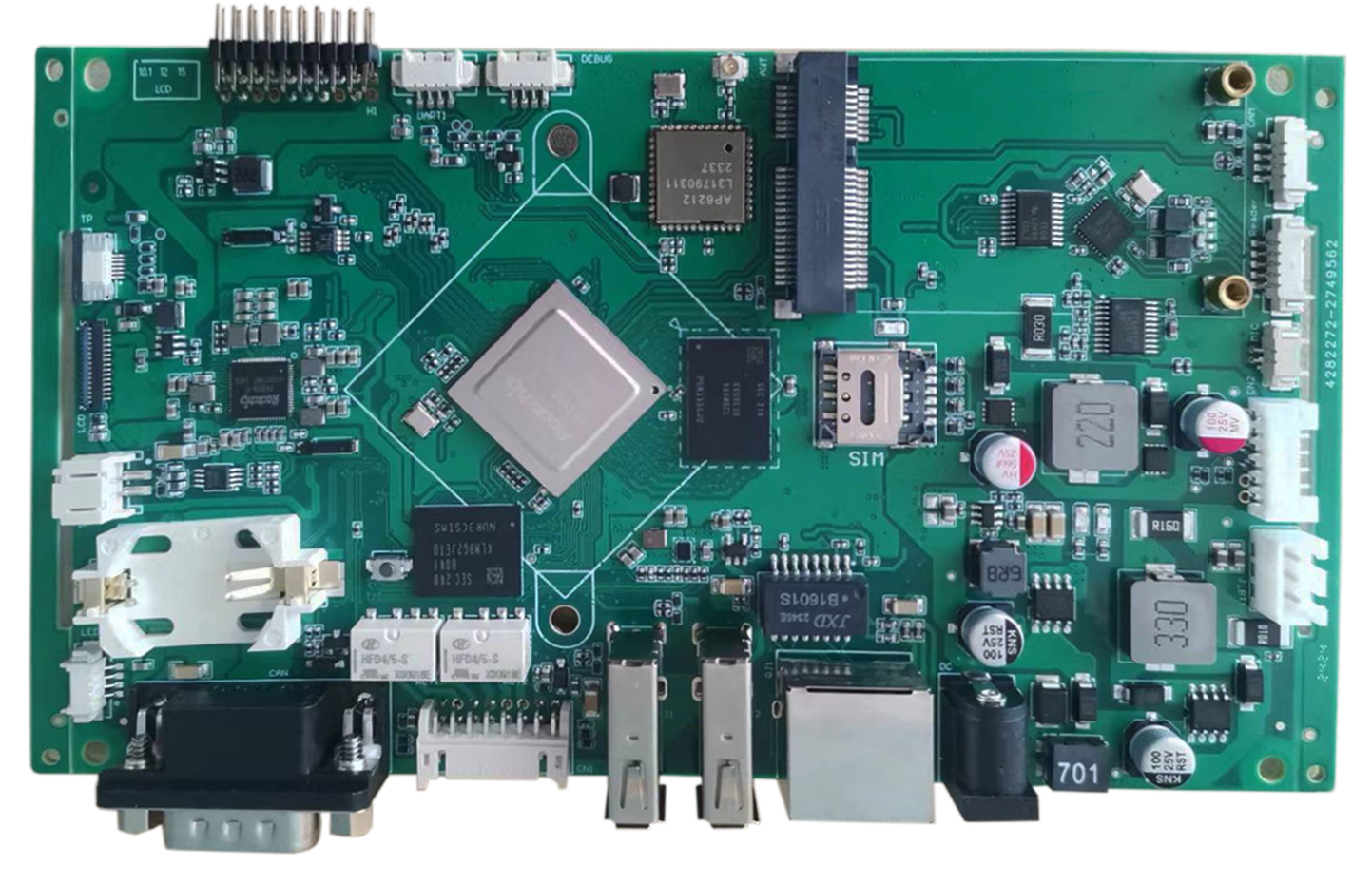

Kizone's industrial-embedded motherboards are designed with small footprints, ideal for limited-space applications. They are equipped with an octa-core CPU, offering a high computing capability, and high flexibility in terms of storage and I/O expansion. All the components are selected from known brands with reliable and rugged quality, suitable for harsh environments. They are easily customizable.
.jpg)
Rockchip RK3568
| SPECIFICATIONS | |
| CPU | • Quad-Core ARM Cortex-A55，up to 2.0GHz |
| GPU | • ARM G52 2EE |
| • Support OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1 | |
| • High performance dedicated 2D processor | |
| NPU | • Support 1T |
| Multi-Media | • Support 4K 60fps H.265/H.264/VP9 decoder |
| • Support 1080P 60fps H.265/H.264 encoder | |
| • Support 8M ISP with HDR | |
| Display | • Support multi-display |
| • Support eDp/HDMI2.0/MIPI/LVDS/24bit RGB/EBC | |
| Interface | • Support USB2.0/USB3.0/PCIE3.0/PCIE2.1/SATA3.0/QSGMII |
AMLogic
| Model |
Amlogic A311D
|
Amlogic A311D2
|
|---|---|---|
|
CPU |
4x Cortex-A73 at 2.2GHz, 2x Cortex-A53 at 1.8GHz | 4x Cortex-A73 at 2.2GHz, 4x Cortex-A53 at 2.0GHz |
| GPU | Arm Mali G52 MP4 (6EE) at 800MHz |
Arm Mali-G52 MP8 (8EE) |
| NPU | 5 TOPS | TBC, extra license required |
| RAM | Up to 4GB 32-bit LPDDR4/X @ 1608MHz | Up to 16GB 64-bit LPDDR4/X @ 2133 MHz |
| Display I/F |
1x HDMI 2.0 up to 4Kp60 1x MIPI DSI |
1x HDMI 2.1 port up to 4Kp60 2x MIPI DSI up to 1920x1080 LVDS 2x 8-lane V-by-One up to 4Kp60 2x 4-lane eDP up to 2560x1600 |
| Camera I/F | 1x 4-lane MIPI-CSI with 8MP ISP | 2x 4-lane MIPI-CSI with 16MP ISP |
| HDMI Input | No | 3x HDMI 2.1 up to 4Kp60 |
| 4K UI | No | Yes |
| Video Decoding |
4Kx2Kp60 + 1x1080p60
|
|
| Main Video Codecs | 4K H.265, VP9, and AVS2 | 8Kp24/4Kp60 AV1, H.265, VP9, 4Kp60 AVS2 |
| Video Encoding | H.265 & H.264 at 1080p60 | H.265 & H.264 at 4Kp50 |
| Ethernet |
Gigabit Ethernet MAC Fast Ethernet PHY |
Gigabit Ethernet MAC Fast Ethernet PHY |
| USB* |
1x USB 3.0 multiplexed with PCIe 1x USB 2.0 with OTG support |
1x USB 3.0 1x USB 2.0 with OTG support |
| PCIe* | 1-lane PCIe multiplexed with USB 3.0 | 1-lane PCIe |
| Process |
12 nm
|
|
